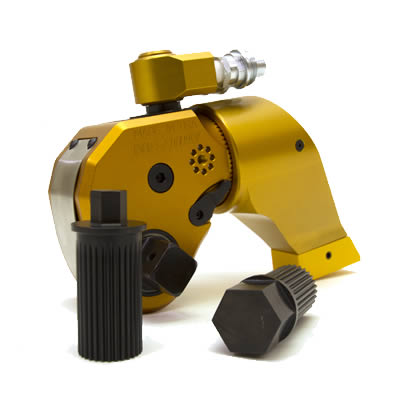

LLAVE DE TORQUE HIDRAULICA DE CUADRANTE 3 MD
| Modelo 3 MD | |
| Torque | 270-3,030 ft-lbs (366-4,108 Nm) |
| Cuadrante | 1" |
| Peso | 11 lbs ( 5 Kg) |

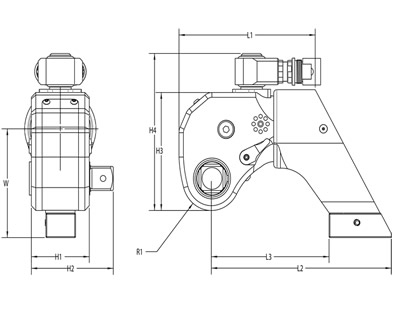

| L1 | 6.18" (157mm) |
| L2 | 8.16" (207mm |
| L3 | 5.34" (136mm) |
| H1 | 2.63" (67mm) |
| H2 | 3.72" (94mm) |
| H3 | 4.88" (124mm) |
| H4 | 6.46" (164mm) |
| W | 4.49" (114mm) |
| R1 | 1.31" (33mm) |
